UGREEN NVMe PCIe Adapter, M.2 SSD M Key and M+B Key to PCIe 4.0 Adapter X4 X8 X16 Slot Card with Heat Sink, Up to 64Gbps Max, Size for NVMe M.2 SSD 2230 2242 2260 2280
UGREEN NVMe PCIe Adapter, M.2 SSD M Key and M+B Key to PCIe 4.0 Adapter X4 X8 X16 Slot Card with Heat Sink, Up to 64Gbps Max, Size for NVMe M.2 SSD 2230 2242 2260 2280
UGREEN M.2 PCIe Adapter
- PCIe 4.0 (16X physical size, 4X bandwidth), 64Gbps transfer speed

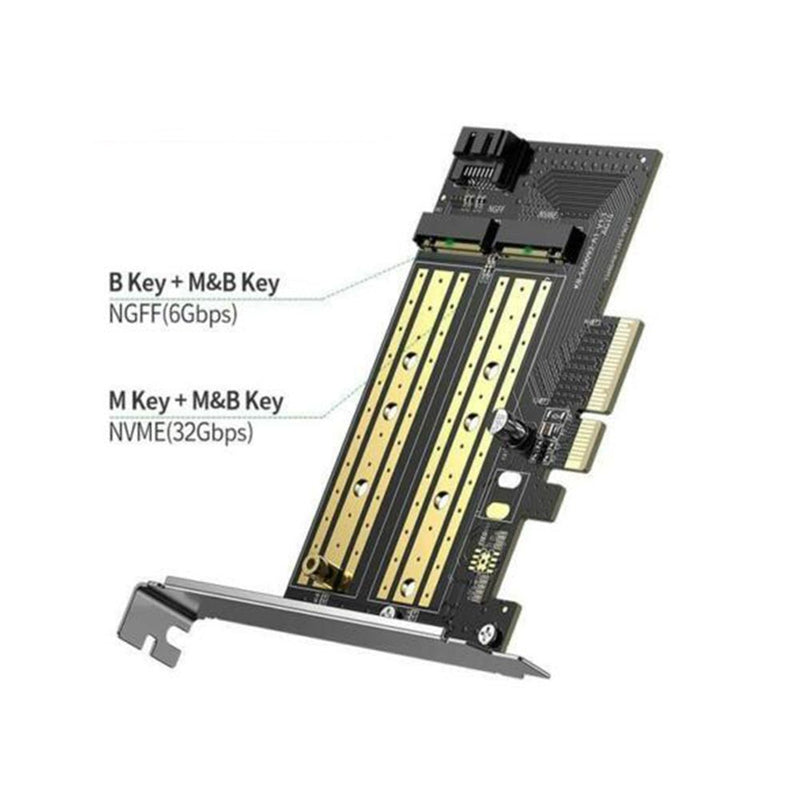

- Supports M-Key and M&B-Key NVMe/AHCI SSD above 2TB

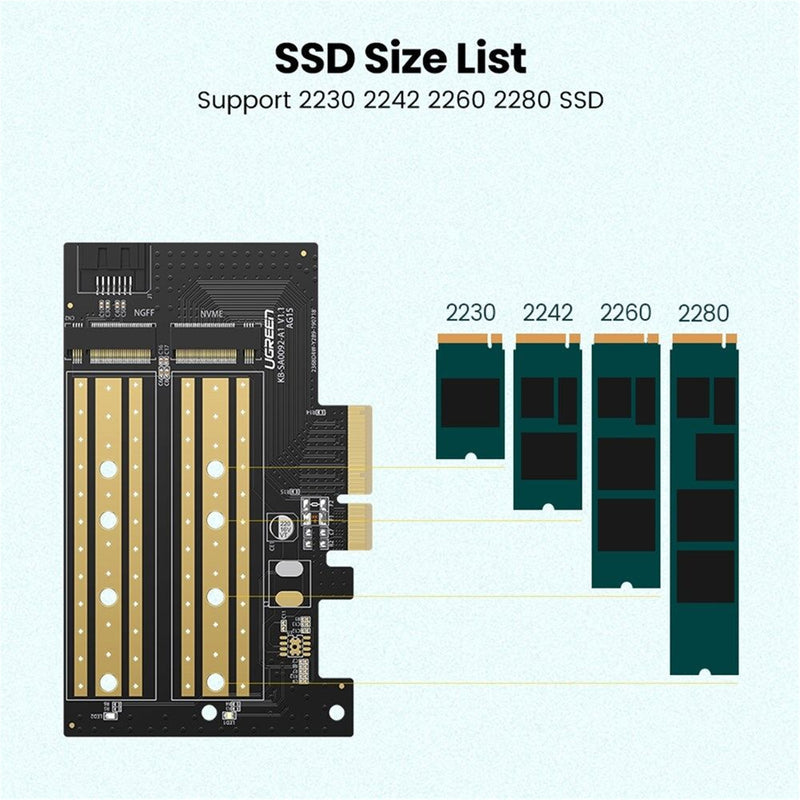

- Supports size 2280/2260/2242/2230 NVMe/AHCI SSD above 2TB
- Supports PCIe 4.0/3.0/2.0/1.0 motherboard and PCIe X16/X8/X4 slot
- Supports Windows 7/8/10, Linux, Mac OS 9/10
- LED indicates power and data transfer status
NOTE: This PCIe NVMe adapter is designed for M-Key and M&B-Key NVMe/AHCI SSD, it is not support SATA/NGFF SSD.
|
|
|
|
|---|---|---|
Safe and stable transmissionBuilt with short-circuit, over-current, over-voltage, EMI and multi protection to ensure safety for your SSD and valuable data. |
Sufficient heat disspationThe Heat Sink is design for better heat dissipation, come with 2 silicone pads to enhance heat dissipation of SSD. |
LED indicatorLED indicates power and data transfer status, the white LED light will flash when it is reading and writing. |
Compatible brand and models (List only part of them):
Compatible with Samsung 950PRO/960EVO/PM951/PM961/SM951/SM961/970EVO/970PRO/980PRO
Compatible with Intel Optane SSD 800P Series, Intel SSD 760p Series, Intel SSD 660p Series, Intel SSD 600p Series
Compatible with WD SN 750/Toshiba OCZ RD400/Plextor M8PEG M6E/Kingston KC1000
Package Contents
1×M.2 NVMe to PCIe adapter with Heat Sink
2×silicone heat dissipation pad
4× Screws
1×screwdriver
1×User Manual
