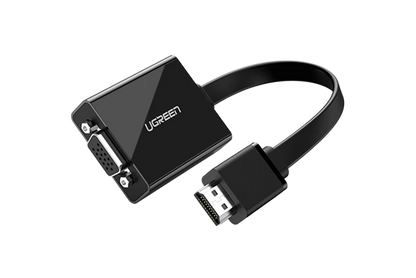

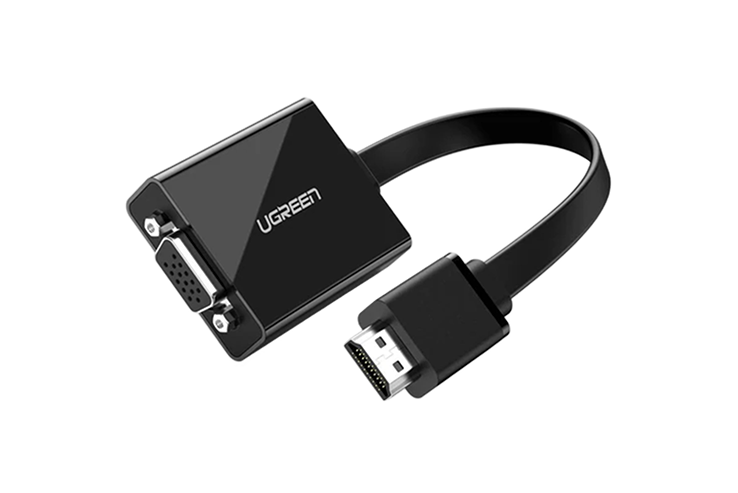

UG-40248 Ugreen HDMI To VGA+3.5 USdio With Power Port Converter Black

Ugreen HDMI to VGA adapter with audio enables you to connect your new NoteBook, Laptop, Chromebook, Rasberry Pi, HD DV with HDMI interface to projector, LCD, TV & Monitor with VGA interface for big screen viewing.

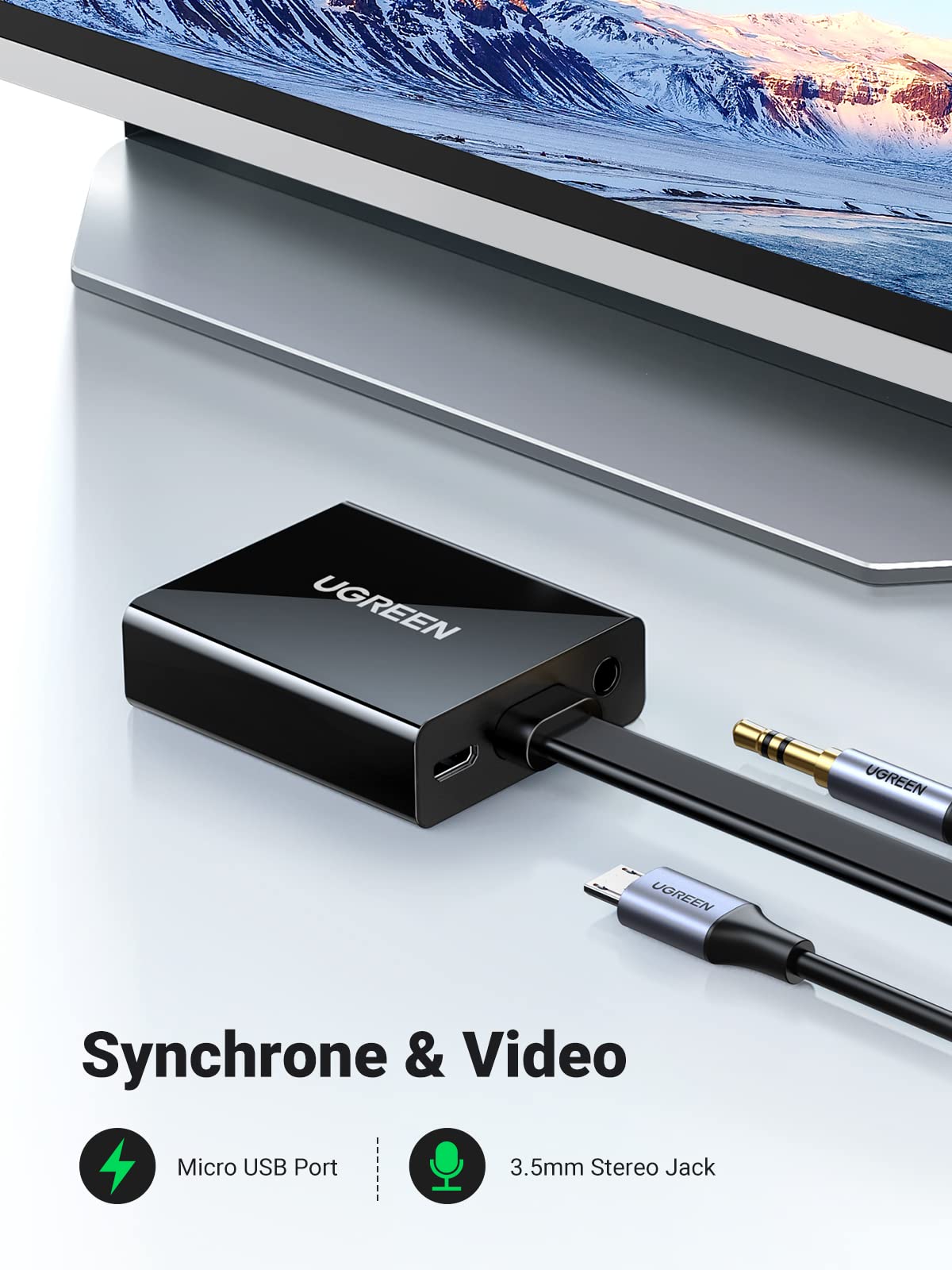

Synchronized Audio & Video

HDMI to VGA converter support resolution up to 1920x1080 @60Hz,and provids with a 3.5mm audio line-out jack, which allows you to enjoy audio and video simultaneously.

Power Supply

When the source devices could not offer enough power, then you could connect a micro USB cable for additional power, Like Mac Mini in 2014, Android Smart TV Box etc.

Difference from Other Brands:

Ugreen hdmi-vga converter comes with audio ouput while other brands may not have.

Specification

1. Input interface: HDMI Male/ Micro USB

2. Output interface: VGA Female,3.5mm audio

3. Support Video output in VGA:1920*1080@60Hz(Max)

4. Additional power from the Micro USB connector

5. Cable Length:16CM

6. HDMI input resolution support: 480p,576p,720p,1080i,1080p; VGA output resolution support: 1024X768, 1280X720, 1280X768, 1280X800, 1280X1024, 1360X768, 1600X1200, 1920X1080

Note:

1. This adapter is not bi-directional, and can only support the signal from HDMI source devices to VGA displays.

2. The micro USB cables included is required for MacBook Pro with Retina Display, Smart TV Box, Raspberry Pi, devices with low-power output HDMI port. You can connect this micro USB cable to the power adapter or USB port on your PC for additional power

3. For Raspberry Pi, you may need to revise the config.txt and reboot.

Package Contents

Ugreen HDMI to VGA with Audio Converter x 1; Micro USB cable x 1.
